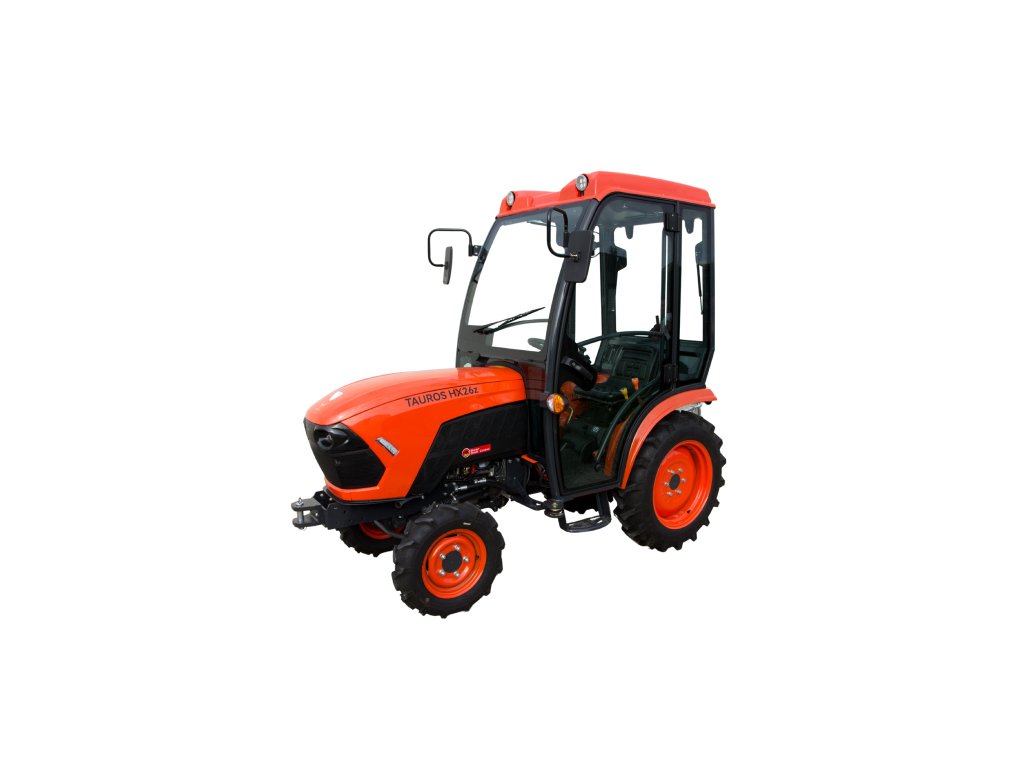

Tauros HX26z
The HX26z meets the requirements of gardeners, hobby farmers and municipal users (municipalities, cities).
| Category: | Tractors for DIY/hobby |
|---|---|
| Výkon: | 19,3 KW (26,1 koní) |
| Obsah motoru: | 1 123 ccm |
| Přední náhon: | Ano |
| Typ motoru: | Changchai 3M78 |
| Počet válců: | 3 |
| Palivo: | diesel |
| Kapacita nádrže: | 23 l |
| Jmenovité otáčky motoru: | 2600 otáček/min |
| Jmenovitý výkon (PTO): | 14,8 KW (20 koní) |
| Rychlost hřídele: | 540/980 otáček/min. |
| Převodovka: | mechanická |
| Počet rychlostí: | 9F a 3R |
| Systém brzd: | kotoučové brzdy s mokrým bržděním |
| Rozsah rychlostí: | reverz: max. 10km/h |
| Pneumatiky (přední/zadní): | 5-12/8.3-20 |
| Tříbodový závěs: | IS kategorie 1, 1N |
| Váha stroje (kg): | 625 |
| Rozměry (mm): | 2410x1105/1015x1970 |
| Hydraulický průtok: | 26,6 l/min. |
| Kapacita zdvihu: | 750 kg |
| Vývody hydrauliky: | 2 vývody |
| Uzávěrka diferenciálu: | Ano |
| Emisní třída: | Euro 5 |
| Účel: | Zahrádkářství, vinohradnictví, komunální služby |
| Typ traktoru: | malotraktor |
The HX26z tractor is equipped with a 3-cylinder engine that meets the strict EURO V emissions standard with a capacity of 1218 cm³ and EPA T4 compliance. It boasts 26 horsepower and a 26-liter fuel tank, enabling extended work periods. This 4WD tractor features a constant mesh mechanical transmission with 9 forward gears and 3 reverse gears, offering enhanced precision and adaptability for various tasks.

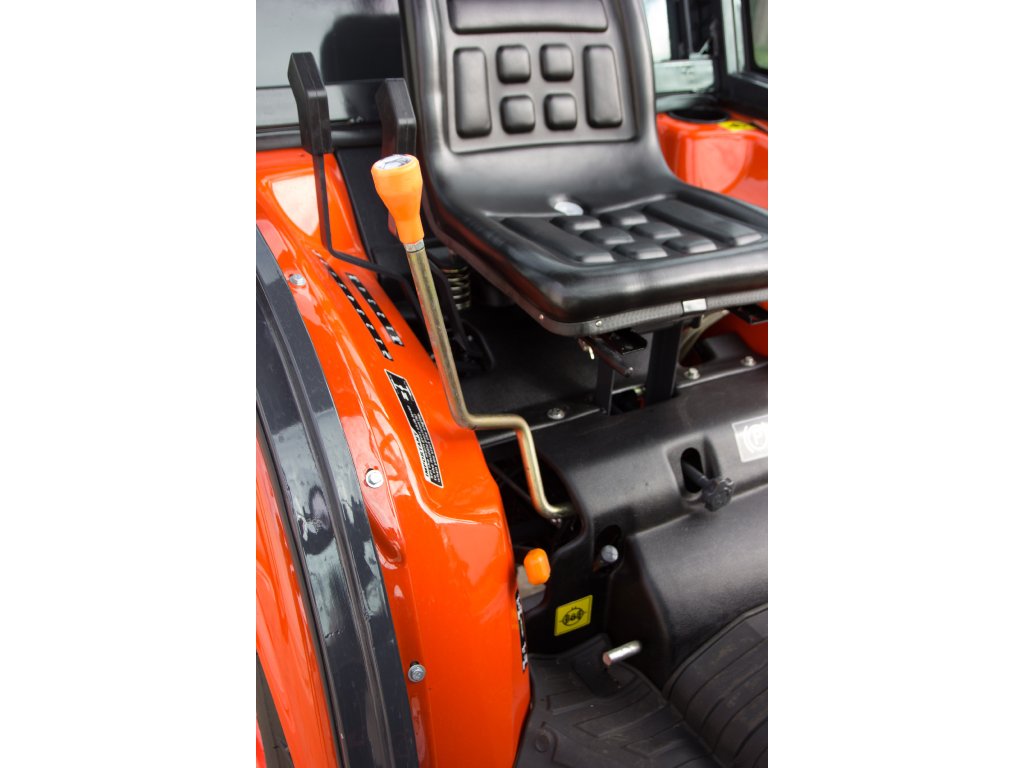

The ergonomic design of the controls allows users to easily shift gears. Additionally, the HX26z model offers impressive performance through its power steering and a hydraulic pump with a flow rate of 25 l/min. These hydraulic systems provide increased loader responsiveness and enhance rear lifting capacity to 750 kg. It comes standard with a dual-acting hydraulic valve and two PTO speeds: 540 and 980 rpm.

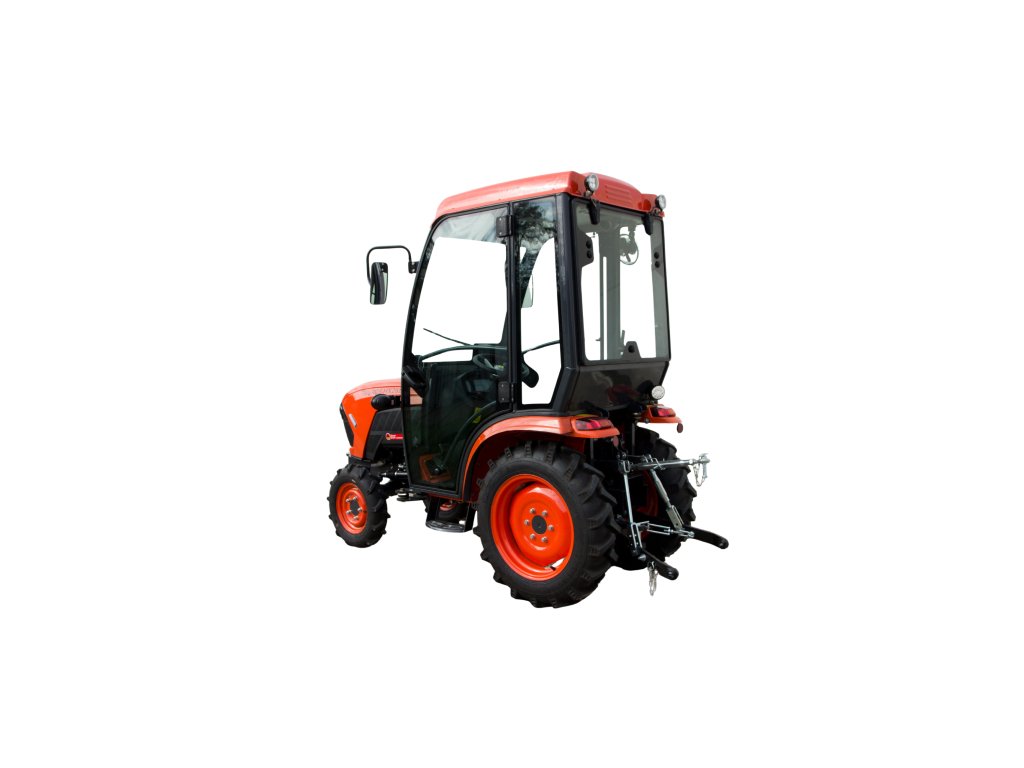

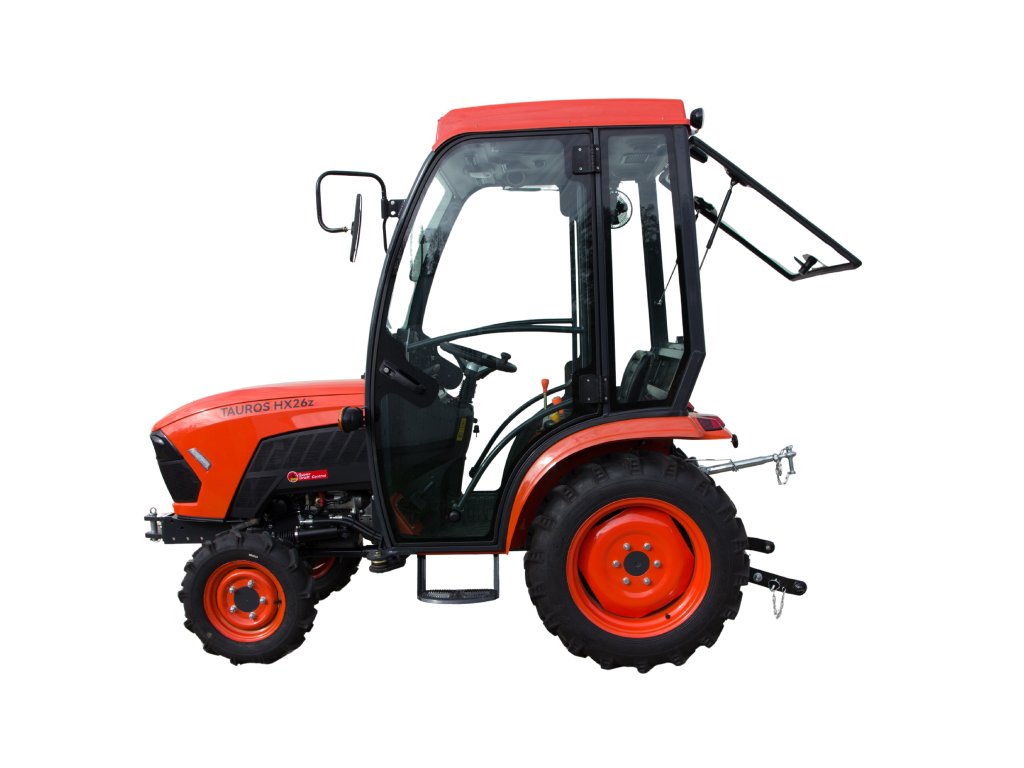

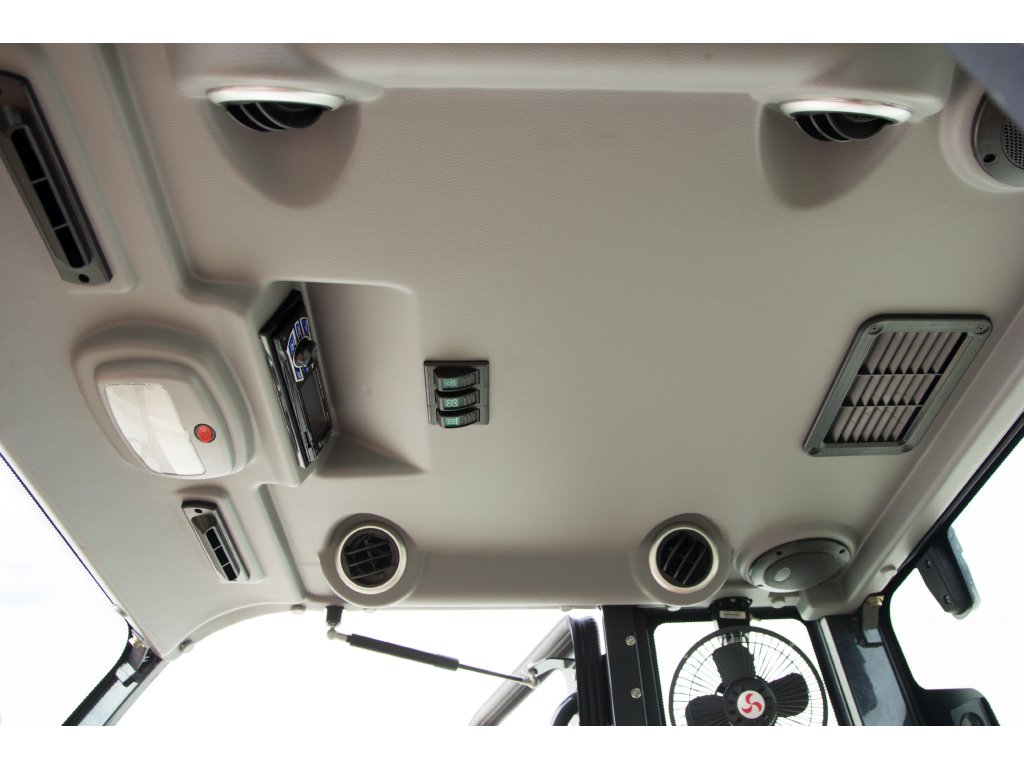

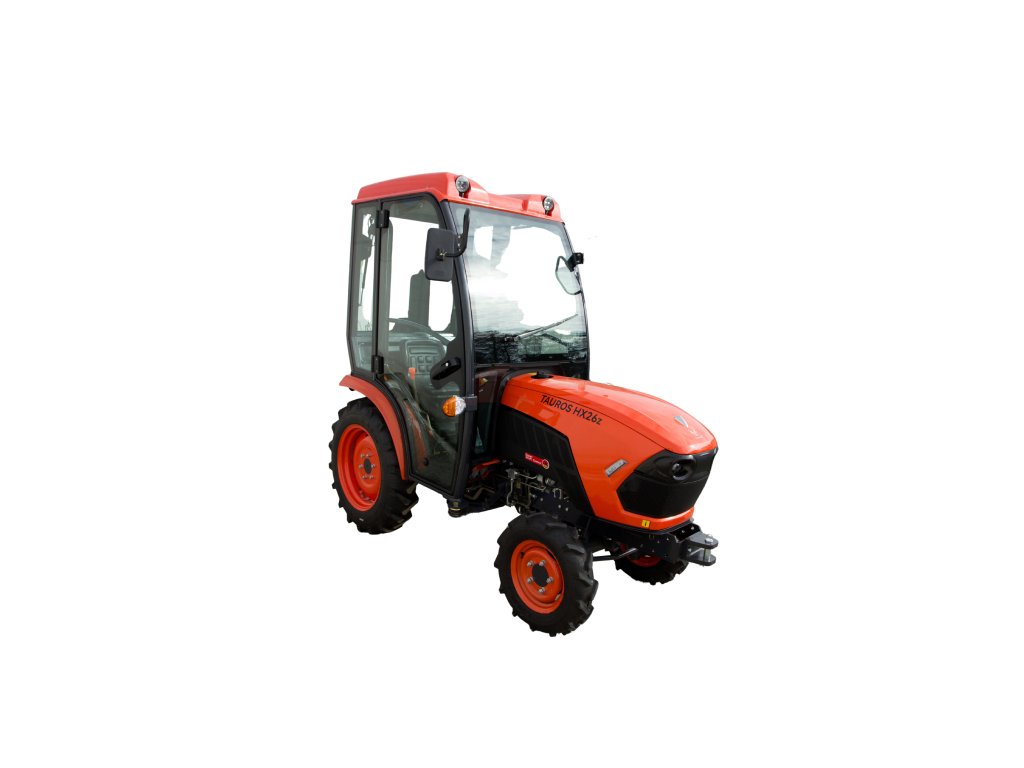

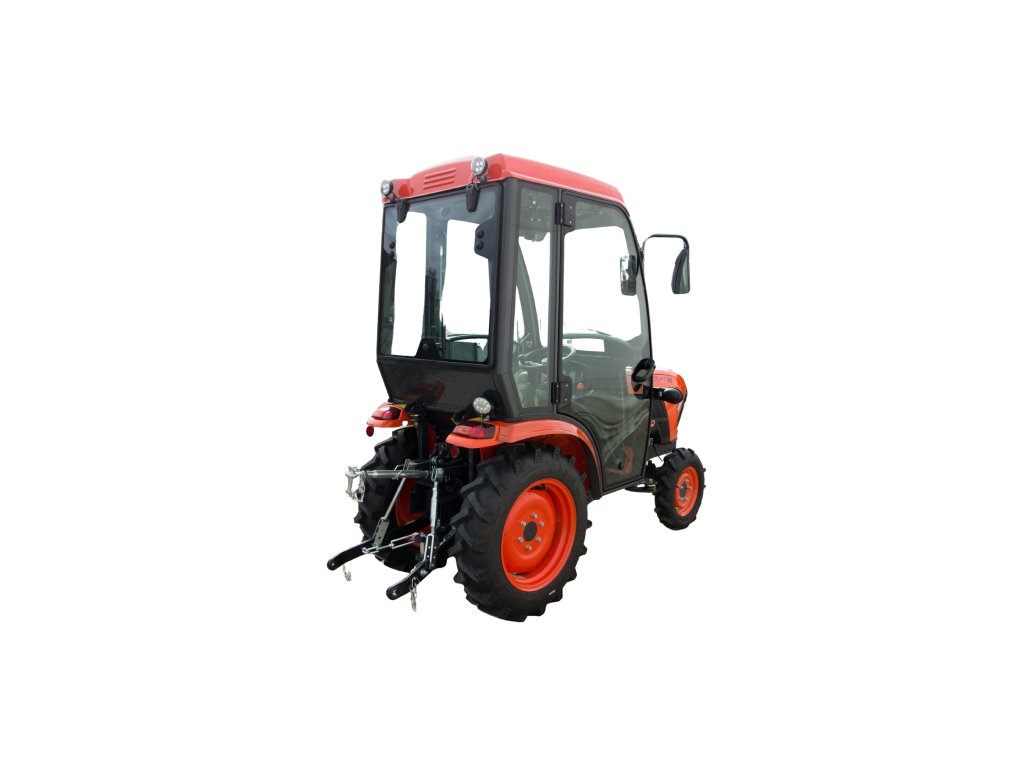

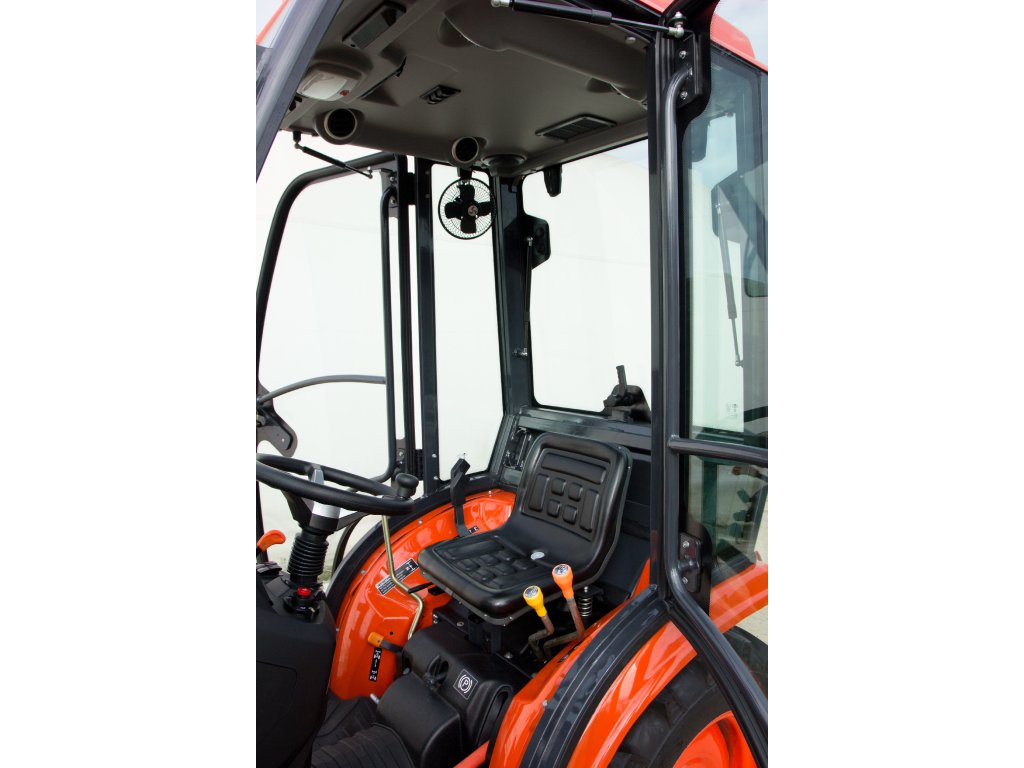

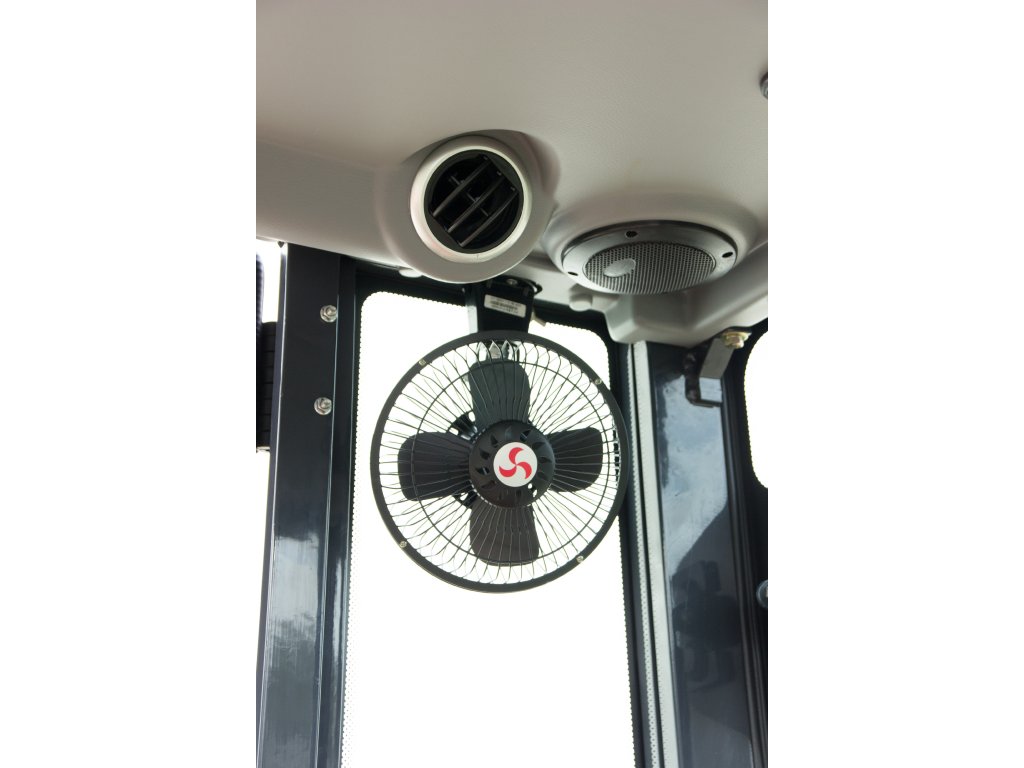

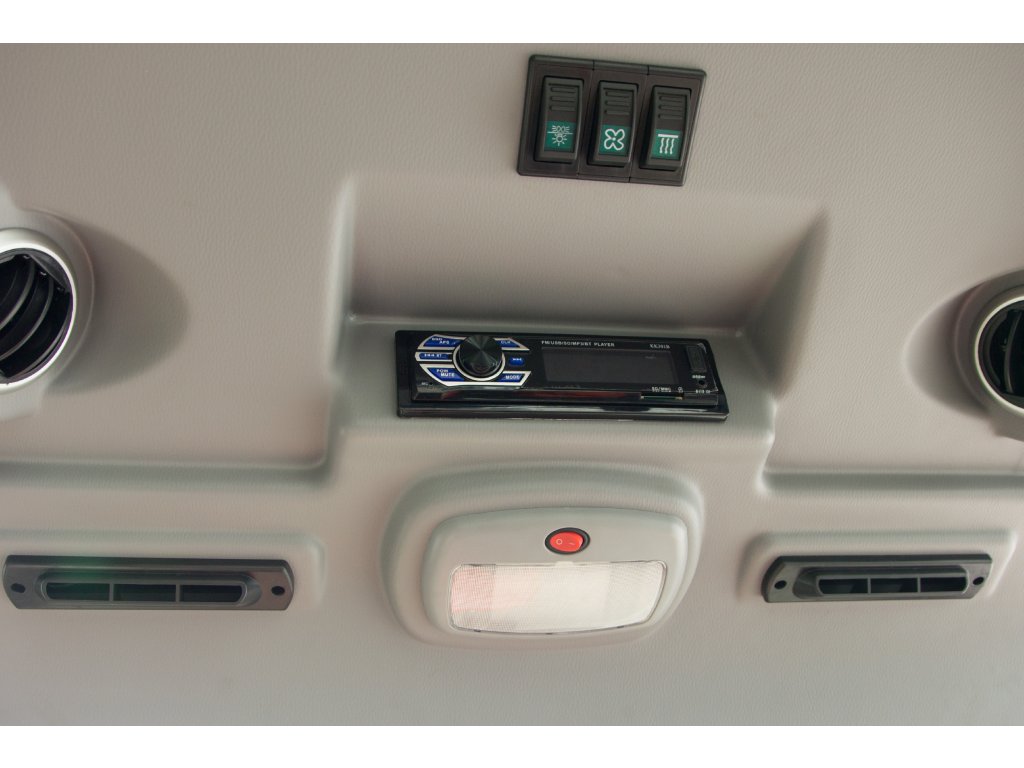

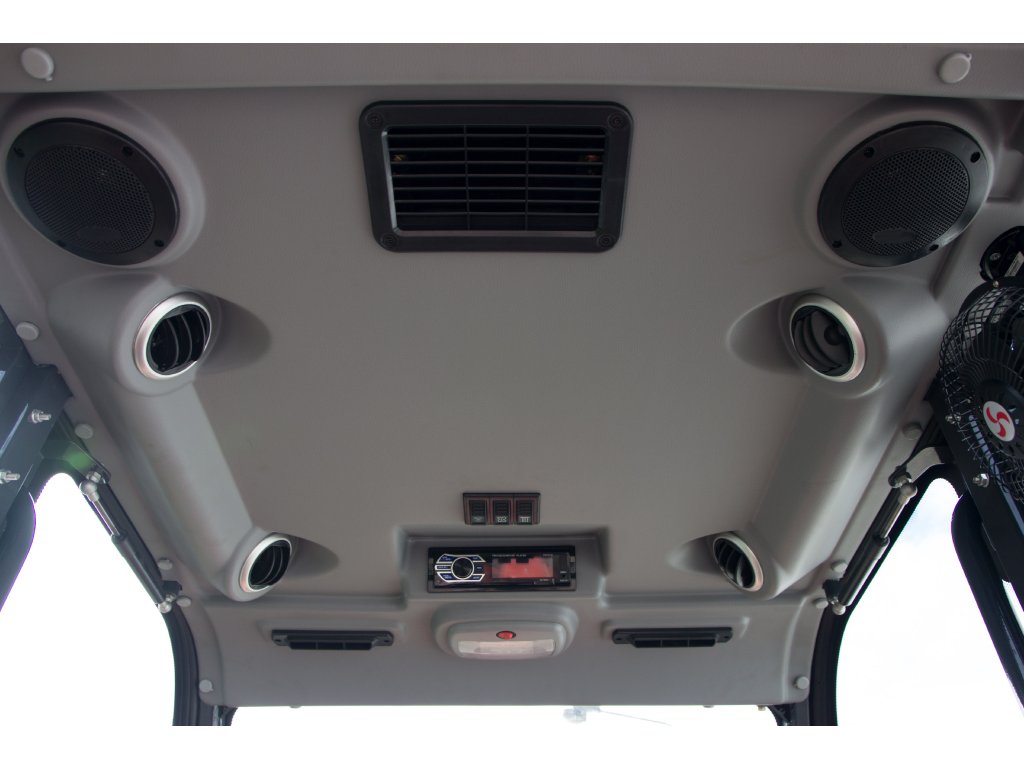

The cabin space provides a functional and well-designed layout, ensuring a more comfortable ride. The road lights feature modern LED technology. The tractor also includes a toolkit for easy daily maintenance.
WHY HX26z?
| VERSATILITY The tractor's small dimensions and equipment make it suitable for use not only by gardeners but also for hobby purposes and municipal maintenance.
|

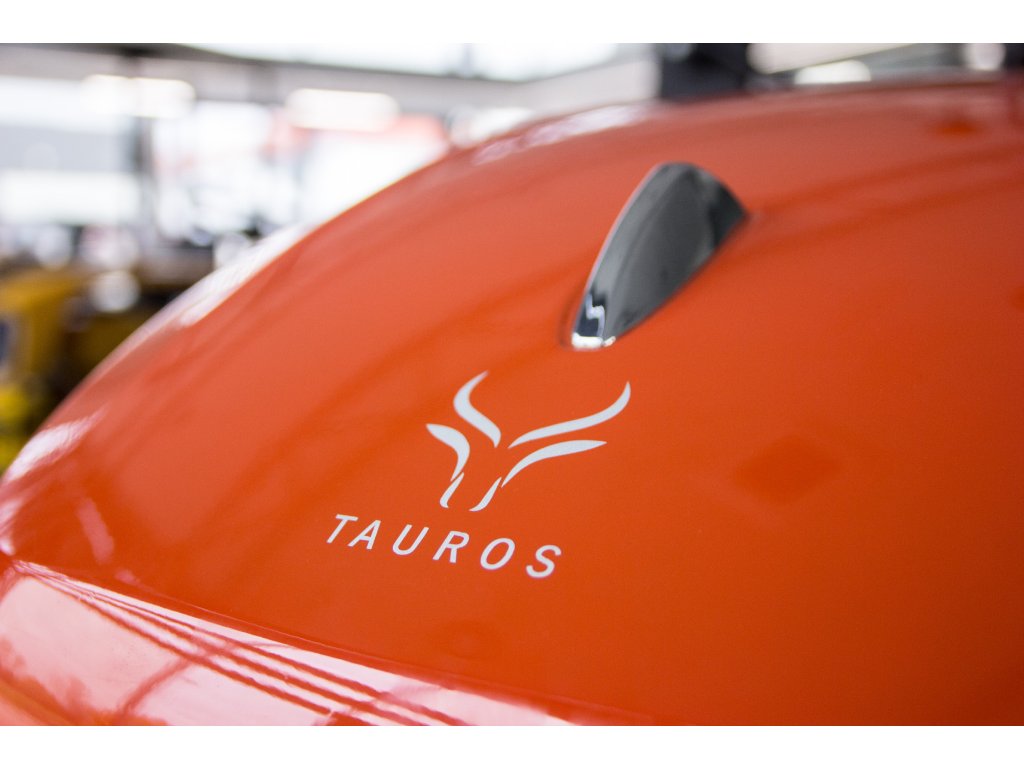

DESIGN Its attractive hood shape, glossy orange paint, and the option to modify the tractor with robust turf or industrial tires will appeal to every agricultural machinery enthusiast.
|

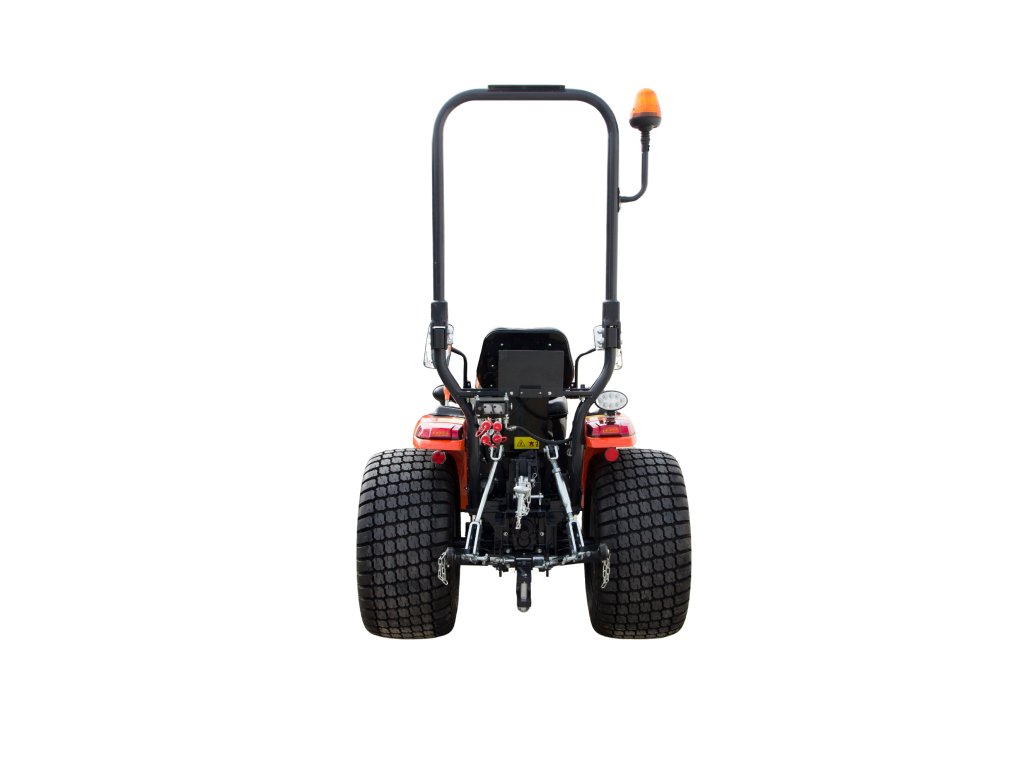

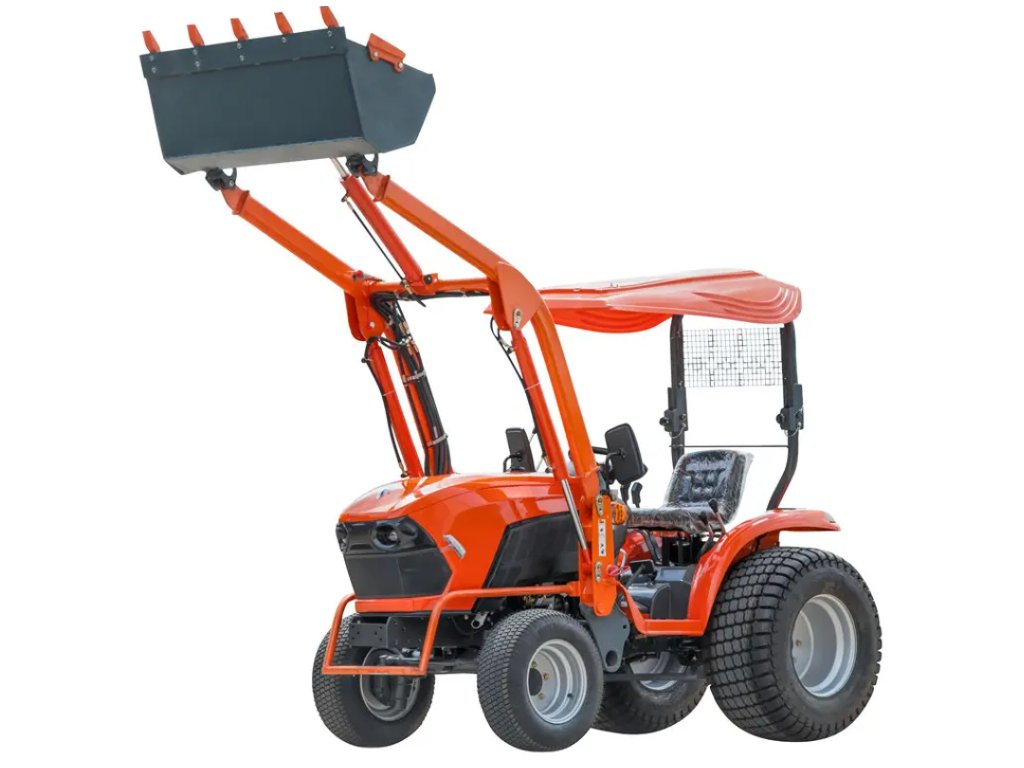

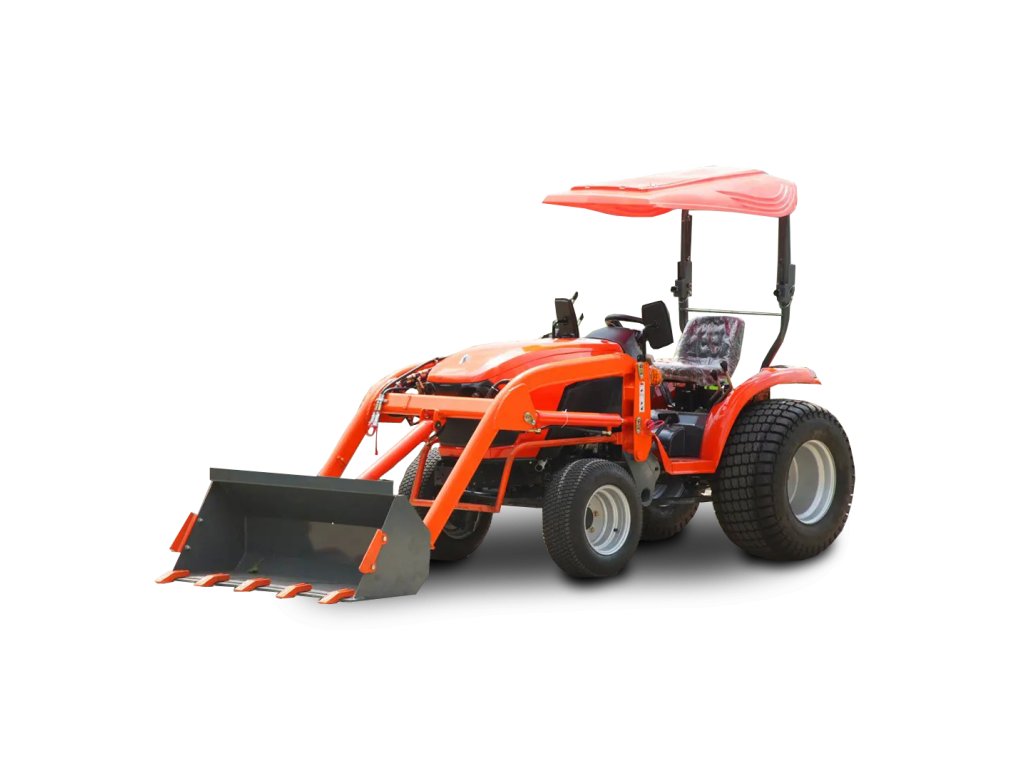

| MULTIFUNCTIONALITY The compact tractor is equipped with a rear PTO and allows for expansion with a front PTO, increasing the machine's functionality with attachments for the front of the tractor, such as a front loader.
|
EASY MAINTENANCE The tractor features a powerful diesel engine that is notable for its fuel efficiency and allows for easy daily maintenance.
|
TECHNICAL SPECIFICATIONS
| Model | Tauros HX26z | |
|---|---|---|
| Performance | Power | 19.3 kW (26.1 HP) |
| Front Drive (4WD) | Yes | |
| Engine Type | Changchai 3M78 | |
| Number of Cylinders | 3 | |
| Fuel | Diesel | |
| Fuel Tank Capacity | 26 L | |
| Engine Rated Speed | 2600 rpm | |
| Rated PTO Power | 14.8 kW (20 HP) | |
| PTO Shaft Speed | 540/980 rpm | |
| Transmission | Mechanical | |
| Number of Gears | 9F + 3R | |
| Other Parameters | Braking System | Wet disc brakes |
| Speed Range | Reverse: max. 10 km/h | |
| Tires (Front/Rear) | 5-12 / 8.3-20 | |

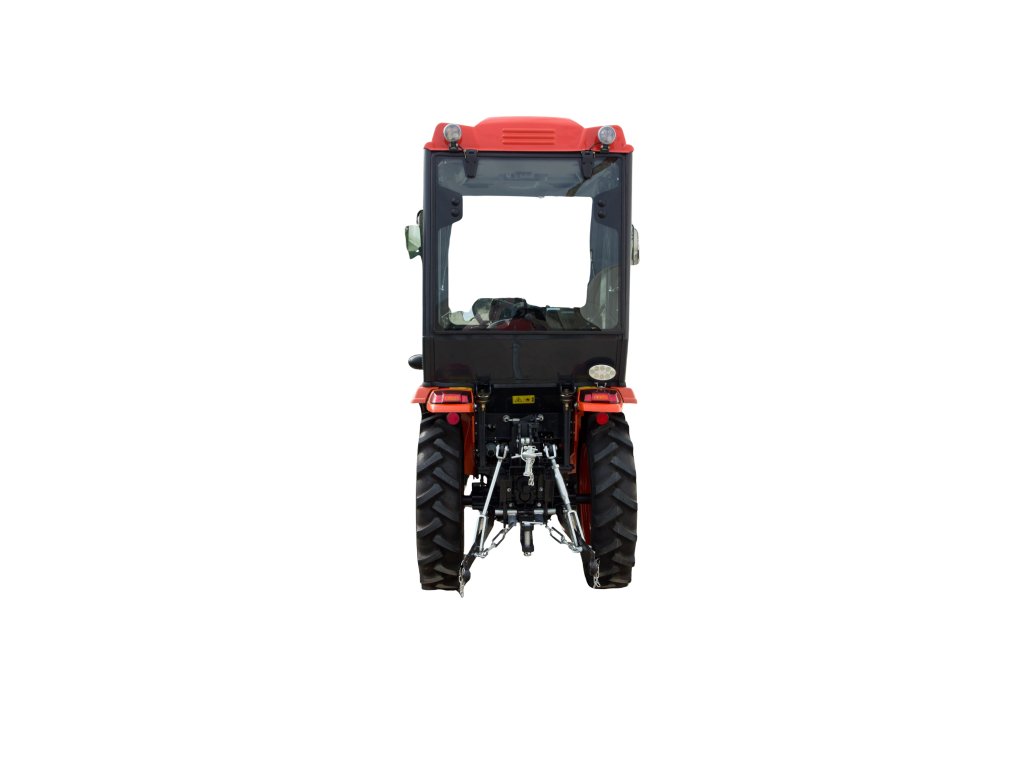

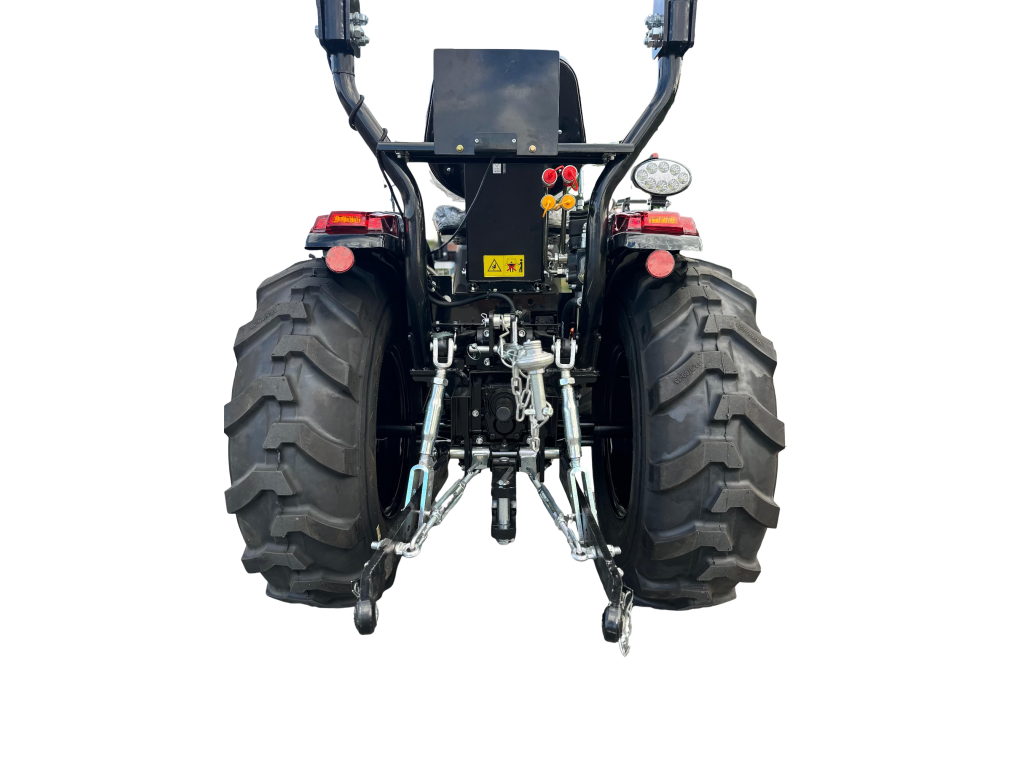

| Three-Point Hitch | IS Category 1, 1N | |
| Machine Weight (kg) | 625 | |
| Dimensions (mm) | 2410 × 1105/1015 × 1970 | |
| Hydraulic Flow | 26.6 L/min | |
| Lifting Capacity | 750 kg | |
| Hydraulic Outlets | 2 outlets | |
| Differential Lock | Yes | |
| Standards | Emissions Class | Euro 5 |
| Purpose | Municipal services, viticulture, farming | |
