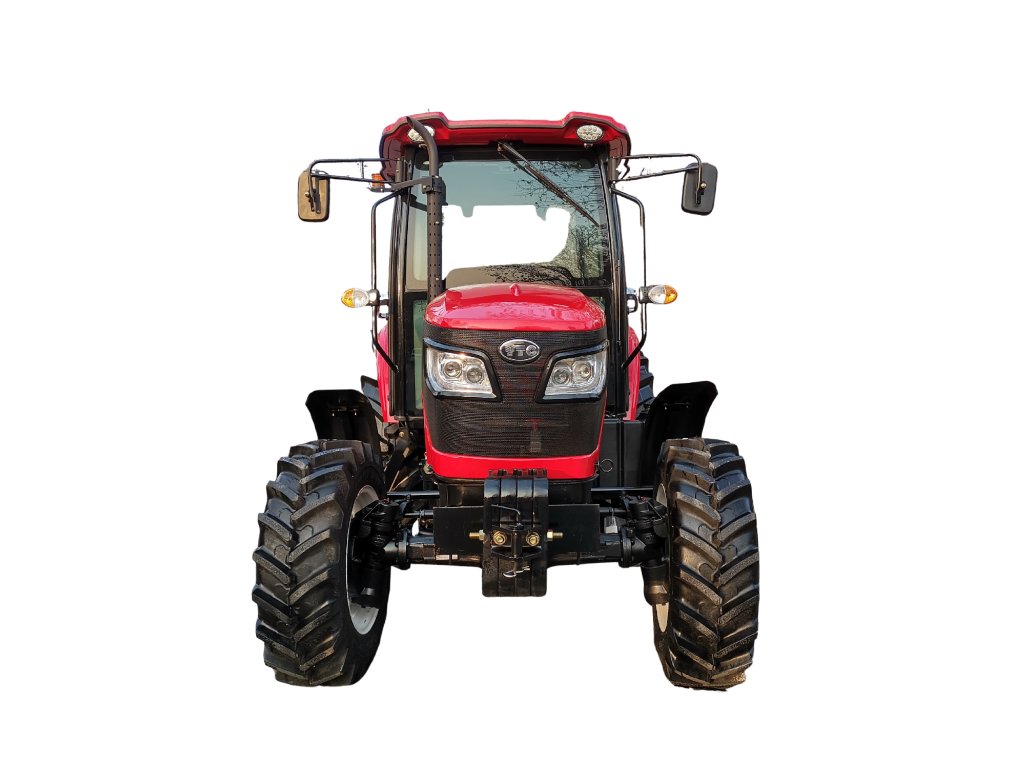

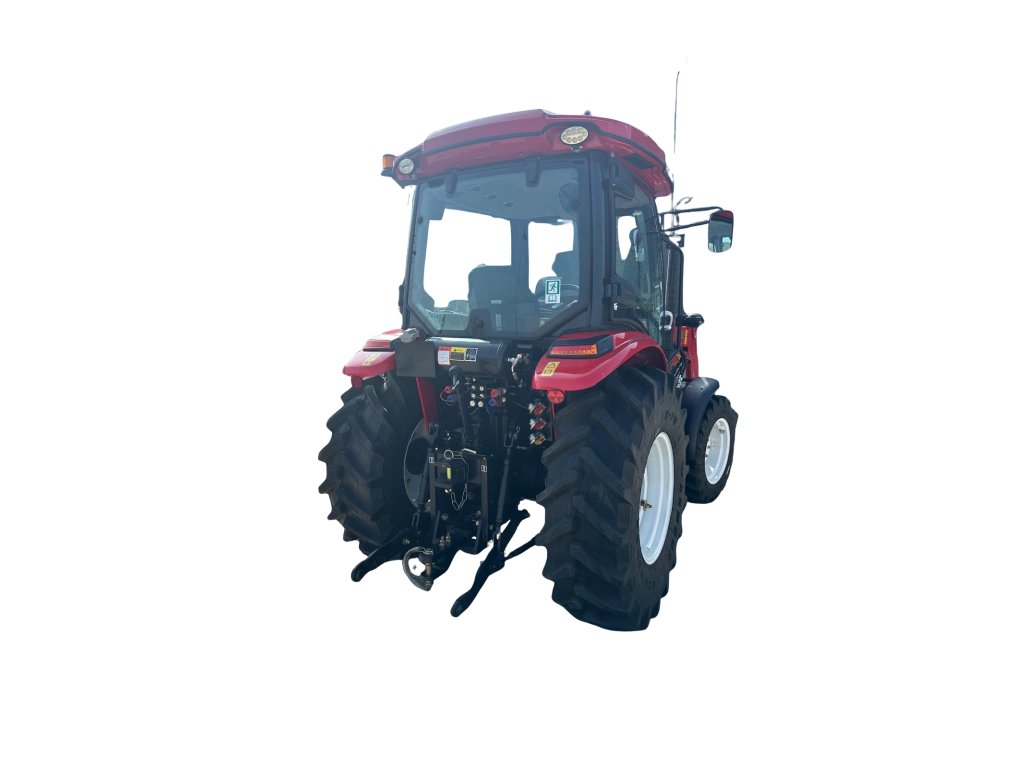

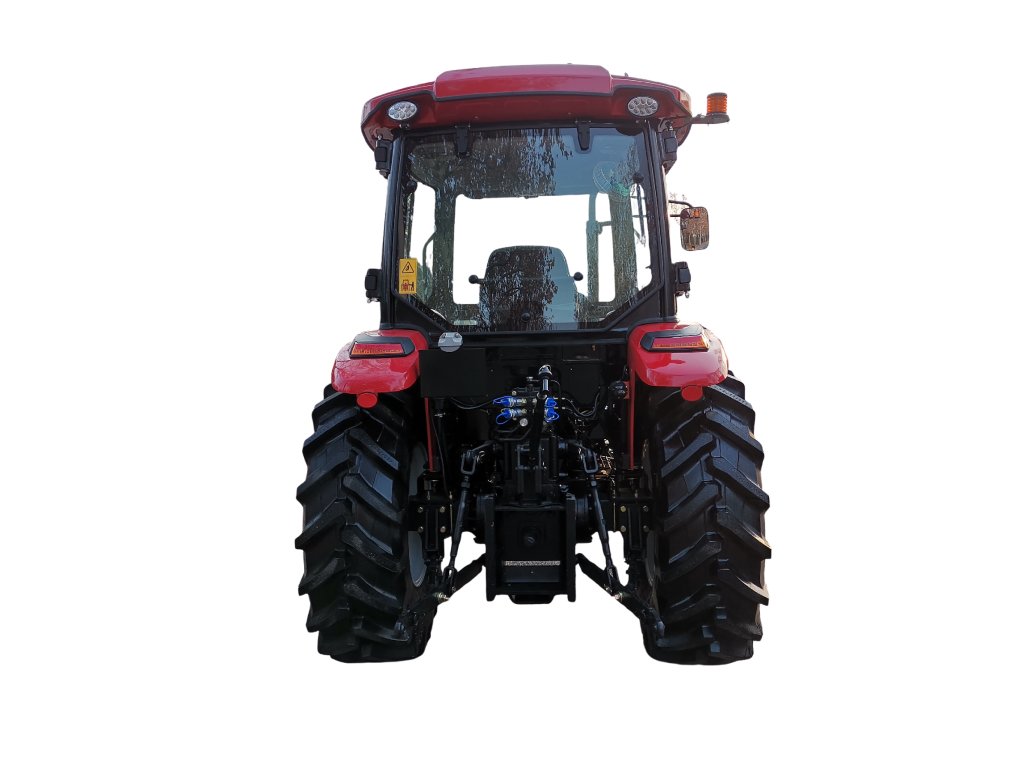

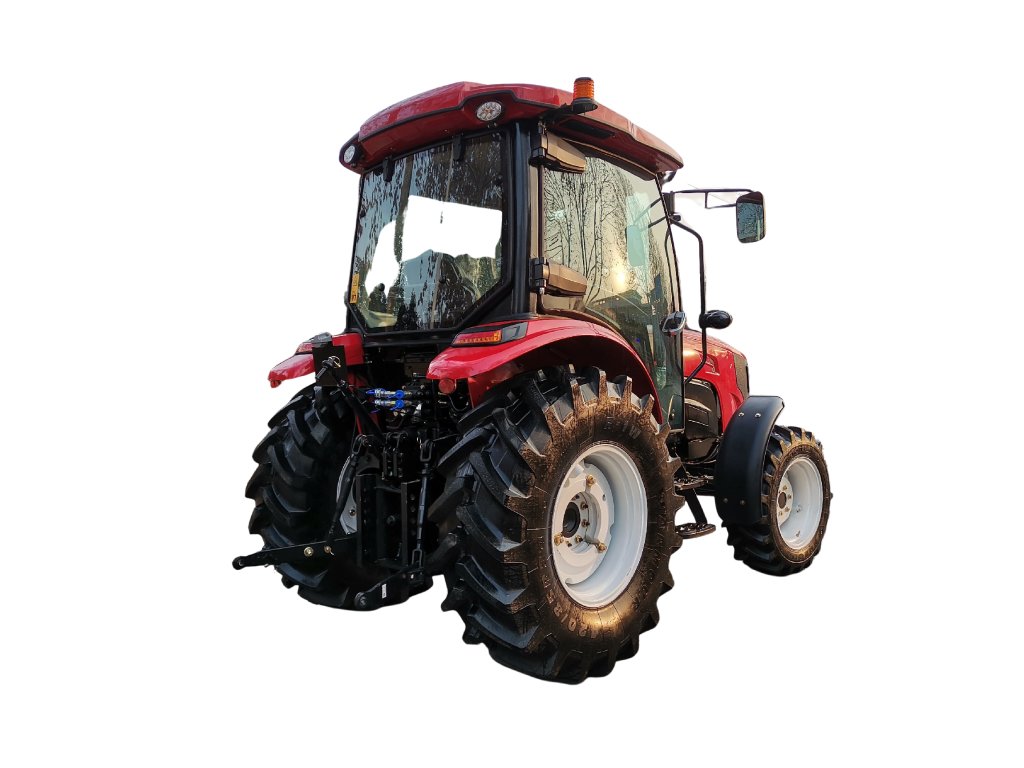

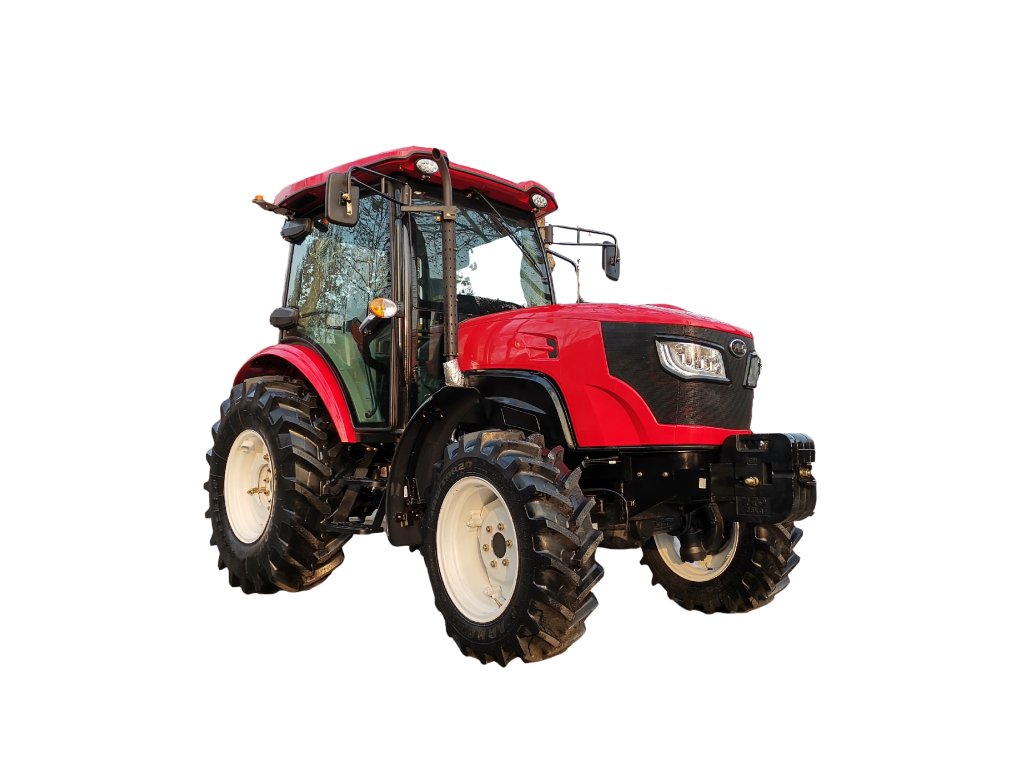

YTO NMF704c
Medium tractor for professional use with 70 hp, offering quality at an unbeatable price.
| Category: | Tractors for professionals |
|---|---|
| Výkon: | 52,1 KW (70 HP) |
| Přední náhon (4WD): | Ano |
| Motor: | DOOSAN; DM02-MFA22 |
| Počet válců: | 4 |
| Palivo: | diesel |
| Kapacita nádrže: | 55 l |
| Jmenovité otáčky motoru: | 2300 otáček/min |
| Jmenovitý výkon vývodové hřídele: | 45 KW |
| Vývodová hřídel (PTO): | 540/1000 otáček/min |
| Převodovka: | synchronizovaná |
| Počet rychlostí: | 12F+12R |
| Systém brzd: | kotoučové, mokré |
| Rozsah rychlostí: | 2,82-29,85 km/h |
| Pneumatiky, přední/zadní: | radiální; 300/70R20; 420/85R24 |
| Váha stroje (kg): | 3200 |
| Rozměry (mm): | 4070x1820x2530 |
| Kapacita zdvihu: | 1600 kg |

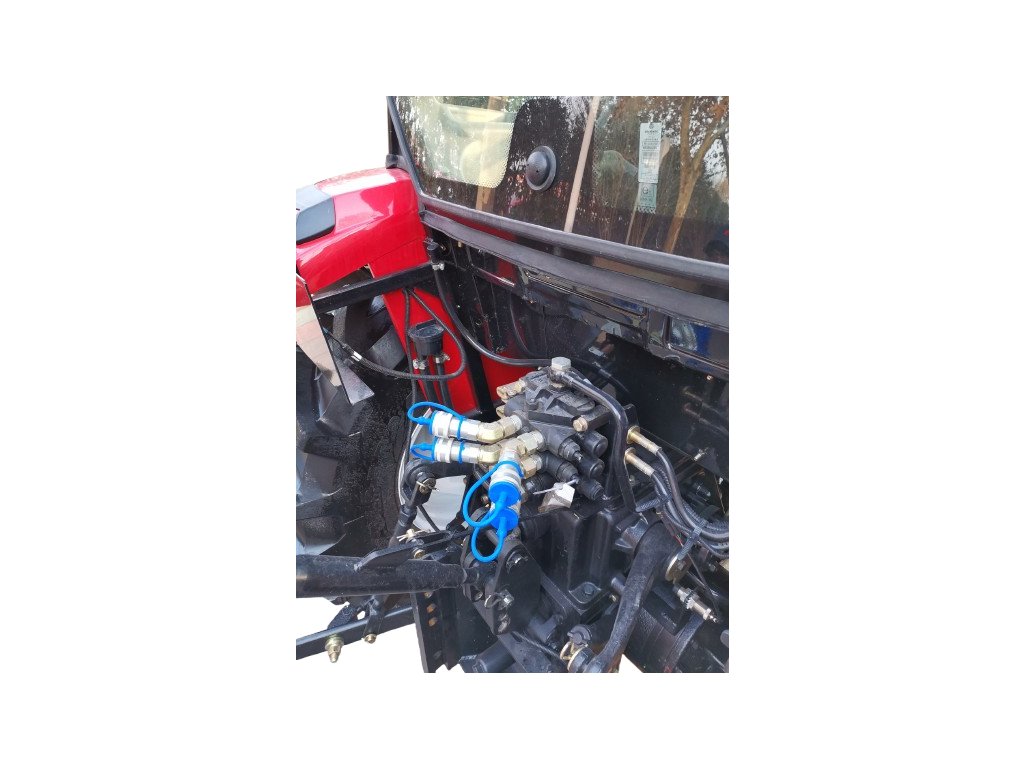

| Vývody hydrauliky: | 2 páry |
| Uzávěrka diferenciálu: | Ano |
| Vybavení kabiny: | topení + klimatizace + rádio |
| Další vybavení: | přední blatník |
| Certifikace: | E-Mark; COC |
| Emisní třída: | Euro 5 |
| Účel: | Farmaření, lesnictví, komunální služby |
The NMF704c tractor is primarily designed for agricultural and forestry purposes. It features a high-pressure Common Rail diesel engine manufactured by the award-winning South Korean company Doosan. This engine complies with the Euro 5 emissions standard and delivers high performance with very low fuel consumption. The tractor is also equipped with wet disc brakes, significantly enhancing its safety.
The machine's reliability and high productivity are rooted in the quality of the engine and technology, which is borrowed from the American tractor manufacturer New Holland. The efficient synchronized transmission allows for easy and quick shifting with 12 forward and 12 reverse speeds, which increases the overall productivity of the machine.

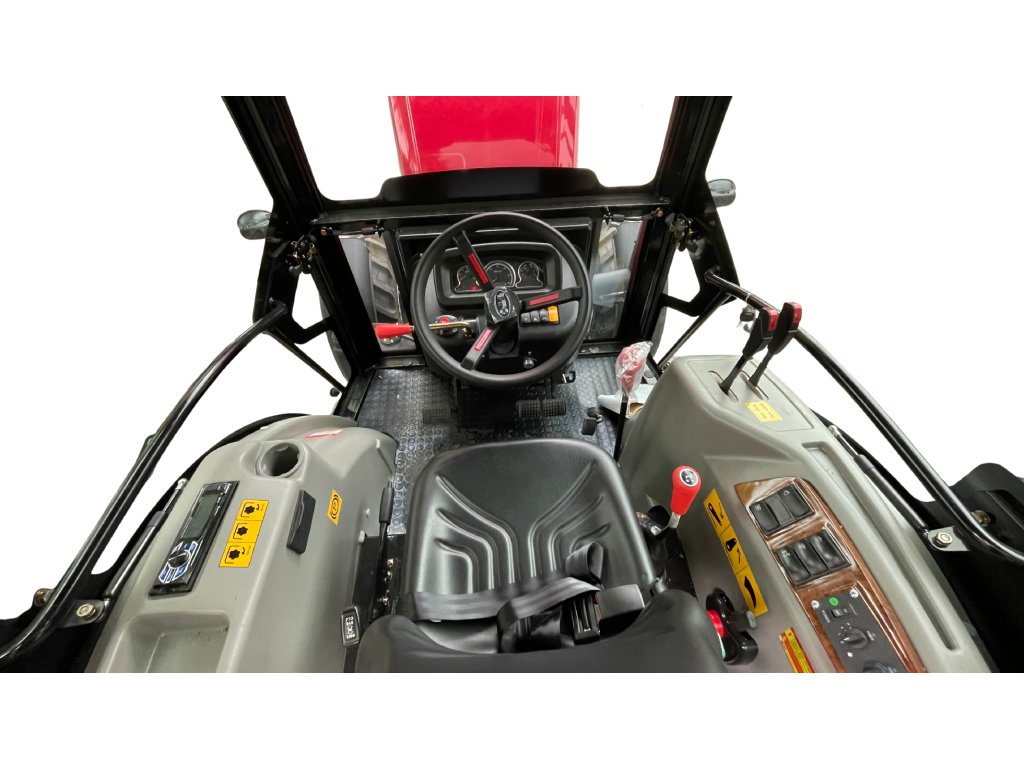

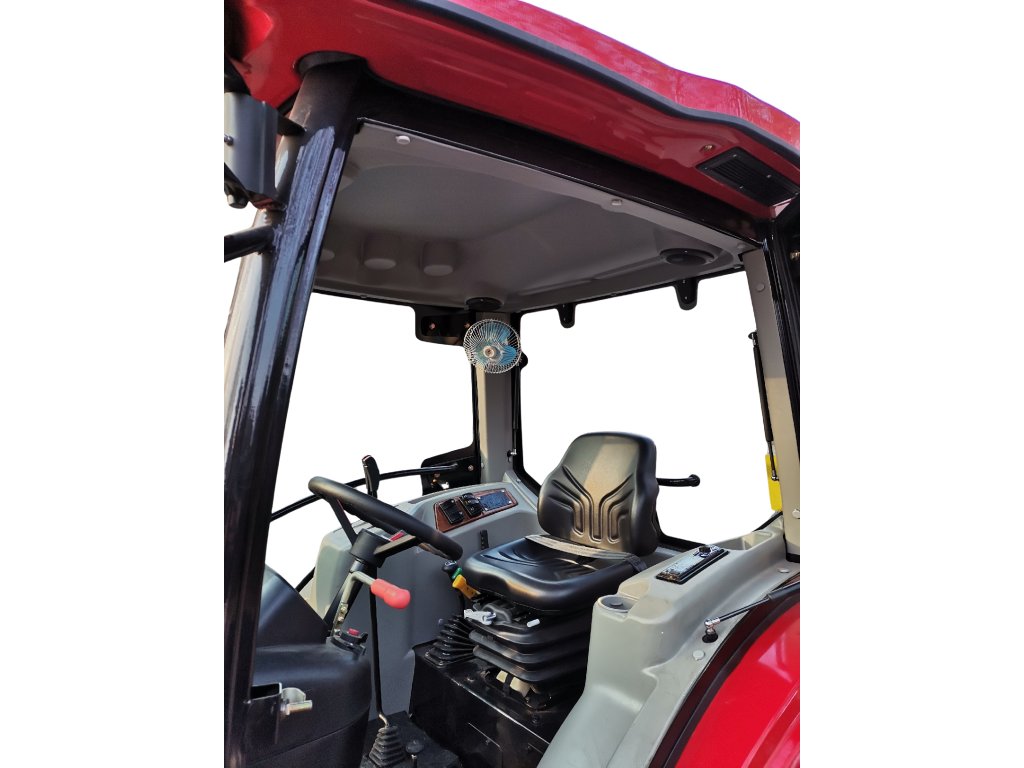

Activating the electro-hydraulic PTO control requires just the push of a button. The fully enclosed cabin offers a wide view and a comfortable driving experience.
WHY NMF704c?
| DURABILITY The resilience and reliability proven under the most demanding conditions of the Chinese countryside (rice fields, monsoon rains, sudden temperature changes) make it an ideal choice for any professional. |
ROBUSTNESS A solid axle, robust tractor frame, radial tires, and front/rear ballast facilitate work in any terrain. |
| ECONOMY The tractor's core, featuring the award-winning DOOSAN engine combined with functional elements from New Holland, offers performance, low consumption, and easy, intuitive operation. |
QUALITY AT AN AFFORDABLE PRICE Precise workmanship, top-notch technology, uncompromising equipment, including air brakes and a suspension seat, at an unbeatable price. |
TECHNICAL SPECIFICATIONS
| Model | YTO NMF704c | |
|---|---|---|
| Performance | Power | 52.1 kW (70 HP) |
| Front Drive (4WD) | Yes | |
| Engine | DOOSAN; DM02-MFA22 | |
| Number of Cylinders | 4 | |
| Fuel | Diesel | |
| Fuel Tank Capacity | 55 L | |
| Engine Rated Speed | 2300 rpm | |
| Rated PTO Power | 45 kW | |
| PTO Shaft Speed | 540/1000 rpm | |
| Transmission | Synchronized | |
| Number of Gears | 12F+12R | |
| Other Parameters | Braking System | Wet disc brakes |
| Speed Range | 2.82-29.85 km/h | |
| Tires (Front/Rear) | Radial; 300/70R20; 420/85R24 | |
| Machine Weight (kg) | 3200 | |
| Dimensions (mm) | 4070x1820x2530 | |
| Lifting Capacity | 1600 kg | |
| Hydraulic Outlets | 2 pairs | |
| Differential Lock | Yes | |
| Standards | Cabin Equipment | Heating + Air Conditioning + Radio |
| Additional Equipment | Front fender | |
| Certification | E-Mark; COC | |
| Emissions Class | Euro 5 | |
| Purpose | Farming, Forestry, Municipal Services | |
